ALLEN BRADLY - MICROLOGIX 800 TYPE NO

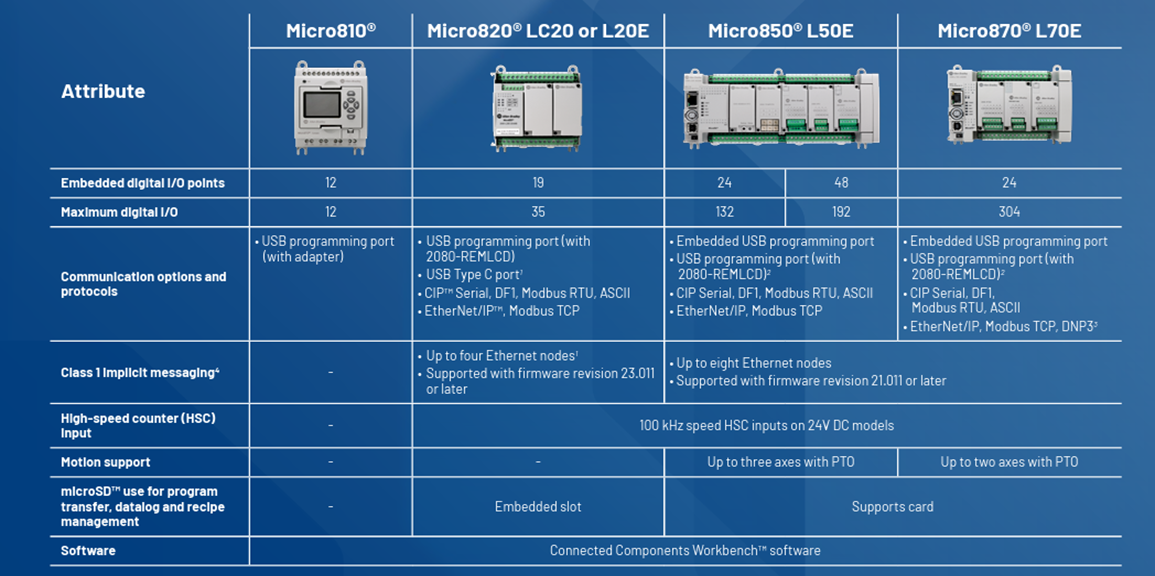

| Features | ||||
| Attribute | Micro8l0 | Micro820 | Micro830 | Micro850 |
| 12-point | 20-point | 10-point 16-point 24-point 48-point | 24-point 48-point | |
| Communication ports, embedded | USB 2 0 with USB adapter) | 10/1OO base I Ethernet port RJ-45) RS232/RS485 non-isolated combo seria! | USB 2 0 non-isolated) p › 232/RS485 non-isolated combo serial | USB 2.0 non-isolated) RS232/RS485 non-isolated combo serial 10/1OO base I Ethernet port RJ-45) |
| Embedded digital 1/0 points!' | 12 | 19 | 10 16 24 48 | 24 48 |
| Base analop 1/0 channels | Four 24V DC digital inputs are shared as 0.1OV analop models only) | One 0.1OV analop 0 UtgUt inputs can be contipured as 0. 1OV analop inputs DC input models only) and via pt up-in modules | Via pt up-in modules | Via plug-in modules and expansion 1/0 |
| Number ot pt up-in modules | 0 | 2 | 2 2 3 5 | 3 5 |
| Maximum digital 1/0!'! | 1 | 35 | 16 32 48 88 | 132 |
| Types ot aaessories or plop-ins supported | • LCD display with backup memory module • USB adapter |
• Micro8OO Remote LCD {2080-REMLCD) •AIIpug-in modulesexcep! 2080-MEMBA0 RTC (see pagel) |
All plugin modules(seepages) | |
| Expansion 1/0 supported | All expansion 1/0 modules(see pages) | |||
| Power supply | Embedded 120/24OV ACandl2/24VDC options | Base unit has embedded 24V DC power supply, optional external 12O/24OV AC power supply available | ||
| Basic instruction speed | 2 5 ps per basic instruction | 0 30 ps per basic instruction | ||
| Minimum scan/cycle timeout | | <4ms | | ||
| Catalogue Number | Description |
| 2080-LC10-12AWA | 8-120/240V AC Input, 4-Relay Output Controller |
| 2080-LC10-12DWD | 8-12V DC Input, 4-Relay Output Controller |
| 2080-LC10-12QBB | 8-24V DC/V AC Input, 4-24V DC Source Output Controller |
| 2080-LC10-12QWB | 8-24V DC/V AC Input, 4-Relay Output Controller |
| 2080-LC20-20AWB | Controller, 8 110-120V AC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 Relay Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots |
| 2080-LC20-20AWBR | Controller, 8 110-120V AC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 Relay Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots, with RTB terminals |
| 2080-LC20-20QBB | Controller, 12 24V DC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 24V DC Source Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots |
| 2080-LC20-20QBBR | Controller, 12 24V DC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 24V DC Source Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots, with RTB terminals |
| 2080-LC20-20QWB | Controller, 12 24V DC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 Relay Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots |
| 2080-LC20-20QWBR | Controller, 12 24V DC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 Relay Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots, with RTB terminals |
| 2080-LC30-10QVB | Micro830 Controller, 6-24V DC/V AC Input, 4-24V DC Sink Output Controller |
| 2080-LC30-10QWB | Micro830 Controller, 6-24V DC/V AC Input, 4-Relay Output Controller |
| 2080-LC30-16AWB | Micro830 Controller, 10-120V AC Input, 6-Relay Output Controller |
| 2080-LC30-16QVB | Micro830 Controller, 10-24V DC/V AC Input, 6-24V DC Sink Output Controller |
| 2080-LC30-16QWB | Micro830 Controller, 10-24V DC/V AC Input, 6-Relay Output Controller |
| 2080-LC30-24QBB | Micro830 Controller, 14-24V DC/V AC Input, 10-24V DC Source Output Controller |
| 2080-LC30-24QVB | Micro830 Controller, 14-24V DC/V AC Input, 10-24V DC Sink Output Controller |
| 2080-LC30-24QWB | Micro830 Controller, 14-24V DC/V AC Input, 10-Relay Output Controller |
| 2080-LC30-48AWB | Micro830 Controller, 28-120V AC Input, 20-Relay Output Controller |
| 2080-LC30-48QBB | Micro830 Controller, 28-24V DC/V AC Input, 20-24V DC Source Output Controller |
| 2080-LC30-48QVB | Micro830 Controller, 28-24V DC/V AC Input, 20-24V DC Sink Output Controller |
| 2080-LC30-48QWB | Micro830 Controller, 28-24V DC/V AC Input, 20-Relay Output Controller |
| 2080-LC50-24AWB | Micro850 Controller, 14-120V AC Input, 10-Relay Output Controller |
| 2080-LC50-24QBB | Micro850 Controller, 14-24V DC/V AC Input, 10-24V DC Source Output Controller |
| 2080-LC50-24QVB | Micro850 Controller, 14-24V DC/V AC Input, 10-24V DC Sink Output Controller |
| 2080-LC50-24QWB | Micro850 Controller, 14-24V DC/V AC Input, 10-Relay Output Controller |
| 2080-LC50-48AWB | Micro850 Controller, 28-120V AC Input, 20-Relay Output Controller |
| 2080-LC50-48QBB | Micro850 Controller, 28-24V DC/V AC Input, 20-24V DC Source Output Controller |
| 2080-LC50-48QVB | Micro850 Controller, 28-24V DC/V AC Input, 20-24V DC Sink Output Controller |
| 2080-LC50-48QWB | Micro850 Controller, 28-24V DC/V AC Input, 20-Relay Output Controller |
| 2080-LC70-24QWB | Micro870 EtherNet/IP Controller, 14 24 VDC/VAC Inputs, 10 Relay Output, 24 DC Power |
| 2080-LC70-24QBB | Micro870 EtherNet/IP Controller, 14 24 VDC/VAC Inputs, 10 24V DC Source Output, 24 DC Power |
| 2085-EP24VDC | 2080 Micro800 System, 24VDC Expansion Power Supply |
| 2085-ECR | 2080 Micro800 System, Micro850 Expansion I/O End Caps / Terminator |
| 2085-IA8 | 2080 Micro800 System, Micro850 Input Module, Digital, 8 Point, 120 VAC |
| 2085-IF4 | 2080 Micro800 System, Micro850 Input Module, Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA |
| 2085-IF8 | 2080 Micro800 System, Micro850 Input Module, Analog, Voltage/Current, 8 Channels, Bipolar, +-10V, 0-20mA |
| 2085-IM8 | 2080 Micro800 System, Micro850 Input Module, Digital, 8 Point, 240 VAC |
| 2085-IQ16 | 2080 Micro800 System, Micro850 Input Module, Digital, 16 Point, 12/24VDC, Sink/Source , IEC |
| 2085-IQ32T | 2080 Micro800 System, Micro850 Input Module, Digital, 32 Point, 12/24VDC, Sink/Source , IEC |
| 2085-IRT4 | 2080 Micro800 System, Micro850 Input Module, Analog, Thermocouple/RTD, 4 Channels |
| 2085-OA8 | 2080 Micro800 System, Micro850 Output Module, Digital, 8 Point, 120/240V AC, Triac |
| 2085-OB16 | 2080 Micro800 System, Micro850 Output Module, Digital, 16 Point, 12/24VDC, Source |
| 2085-OF4 | 2080 Micro800 System, Micro850 Output Module, Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA |
| 2085-OV16 | 2080 Micro800 System, Micro850 Output Module, Digital, 16 Point, 12/24VDC, Sink |
| 2085-OW16 | 2080 Micro800 System, Micro850 Output Module, Digital, 16 Point, 12/24VDC, Relay, 2A |
| 2085-OW8 | 2080 Micro800 System, Micro850 Output Module, Digital, 8 Point, 12/24VDC, Relay, 2A |
